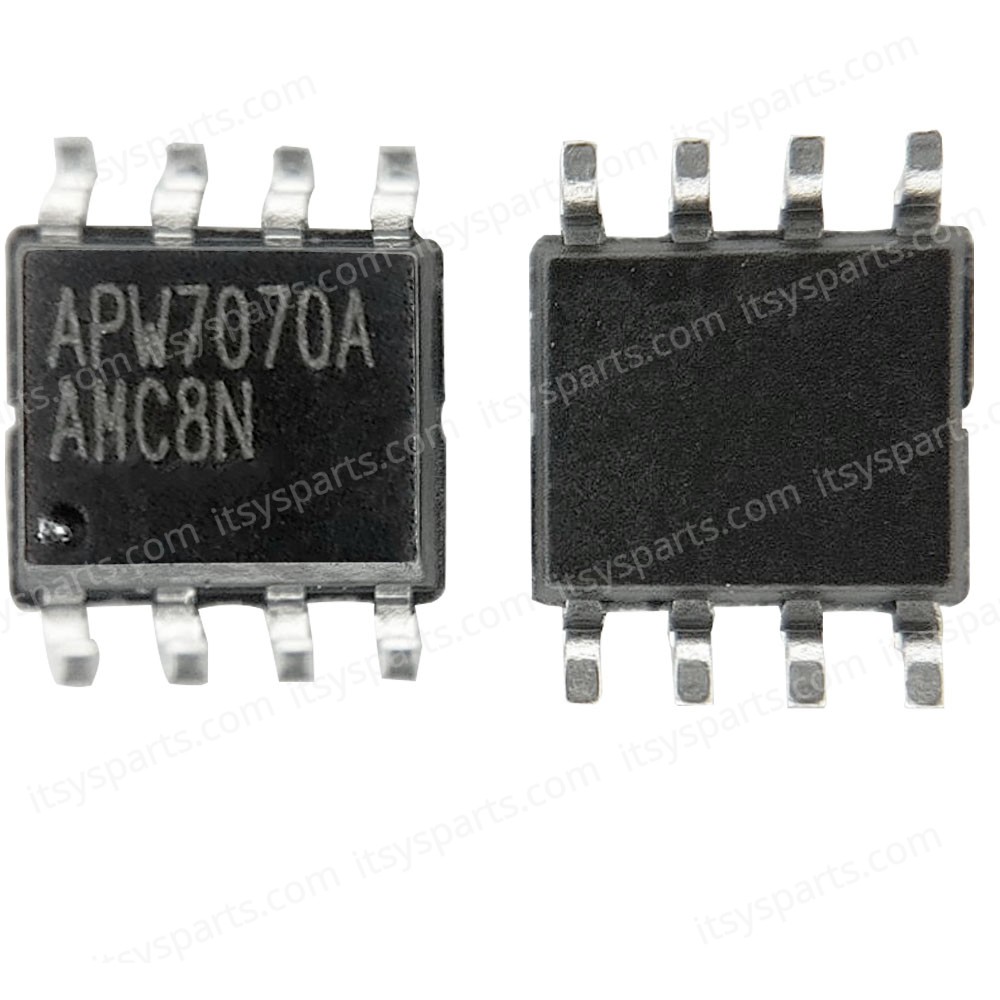

Controller IC Chip - Synchronous Step-Down Converter MOSFET APW7070A APW70A APW7070 APW7070/A chip for laptop - Integrated Laptop Chip (Code 1-CHIP0296)

Controller IC Chip - Synchronous Step-Down Converter MOSFET APW7070A APW70A APW7070 APW7070/A chip for laptop - Integrated Laptop Chip (Code 1-CHIP0296)
Controller IC Chip - Synchronous Step-Down Converter MOSFET APW7070A APW70A APW7070 APW7070/A chip for laptop - Integrated Laptop Chip (Code 1-CHIP0296)
0 reviews • Write a review
from
9.90€
Ex Tax: 7.98€
  • Stock: In Stock
  • Brand: Unbranded
  • Model: 1-CHIP0296
  • SKU: 1-CHIP0296
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Realtime Stock

We send via DHL, UPS, USPS, FEDEX, Hellenic Greek Post, during the same day of the order placement. (Weekends are excluded).The average time of delivery for the United States is 13 to 18 days while for Europe is 5 to 7 days. Return Policy.

Our products are new and are shipped immediately. They have a 2 year warranty (except for batteries) and free shipping. Service line +302109247000 09:00-19:00 Mon-Fri. Our prices are without hidden charges and fees. We comply with the consumer rights directive 2011/83/EU. Any reference to the trademarks of the laptop manufacturers Toshiba, Lenovo, Acer, MSI, Asus, HP etc. is intended solely for the purpose of identifying the laptop manufacturer. Our Company and this website are not affiliated distributors with these manufacturers, the products offered for sale through our website are manufactured as high quality replacements by third party manufacturers. The products provided by our Company are not authentic. But they are worthy replacements and are sold for use in laptops of all manufacturers Toshiba Lenovo Acer MSI Asus HP etc.

Controller IC Chip - Synchronous Step-Down Converter MOSFET APW7070A APW7070 APW7070/A chip for laptop- Integrated portable calculator chip(SKU.1-CHIP0296)

The APW7070/A is a 3A, synchronous, step-down converter with integrated 80mW MOSFETs. The device, with current-mode control scheme, can convert 4.75~20V input voltage to the output voltage adjustable from 0.8 to 90% VIN to provide excellent output voltage regulation. The APW7070A regulates the output voltage in an automatic PSM/PWM mode operation, depending on the output current, for high efficiency operation over light to full load current. The APW7070 always works in a ForcedPWM mode with constant frequency over full output current range for low-noise requirements.The APW7070/A is also equipped with power-on-reset, soft-start and whole protections (including over-voltage, under-voltage, overtemperature and current-limit) in a single package. In shutdown mode, the supply current drops below 5mA. This device, available in an 8-pin SOP-8P package, provides a very compact system solution with minimal external components and good thermal conductance

Wide Input Voltage from 4.75V to 20V · Output Current up to 3A · Adjustable Output Voltage from 0.8V to 90%VIN - 0.8V Reference Voltage - ±2.5% System Accuracy · 80mW Integrated MOSFETs · High Efficiency up to 93% · Current-Mode Operation - Stable with Ceramic Output Capacitors - Fast Transient Response · Power-On-Reset Monitoring · Fixed 380kHz Switching Frequency in PWM Mode · Automatic Pulse-Skipping Mode (PSM)/PWM Mode Operation (APW7070A) · Forced-PWM Operation (APW7070) · Built-in Digital Soft-Start · Output Current-Limit Protection with Frequency Foldback · 70% Under-Voltage Protection · Over-Temperature Protection · 118% Over-Voltage Protection · <5mA Quiescent Current during Shutdown · Thermal-Enhanced SOP-8P Package · Pb-Free Available as an Option · Lead Free and Green Devices Available (RoHS Compliant)

Please check the IC Number and match with your existing Product.

When you receive before using it.

Please confirm the chip you received is brand new as described,if you suspect the chip is not new or not as described. Please don't use it and contact us immediately.

Please make sure you have advanced soldering skill to solder the chips that you will order.

Once it has been used, no return will be accepted.
