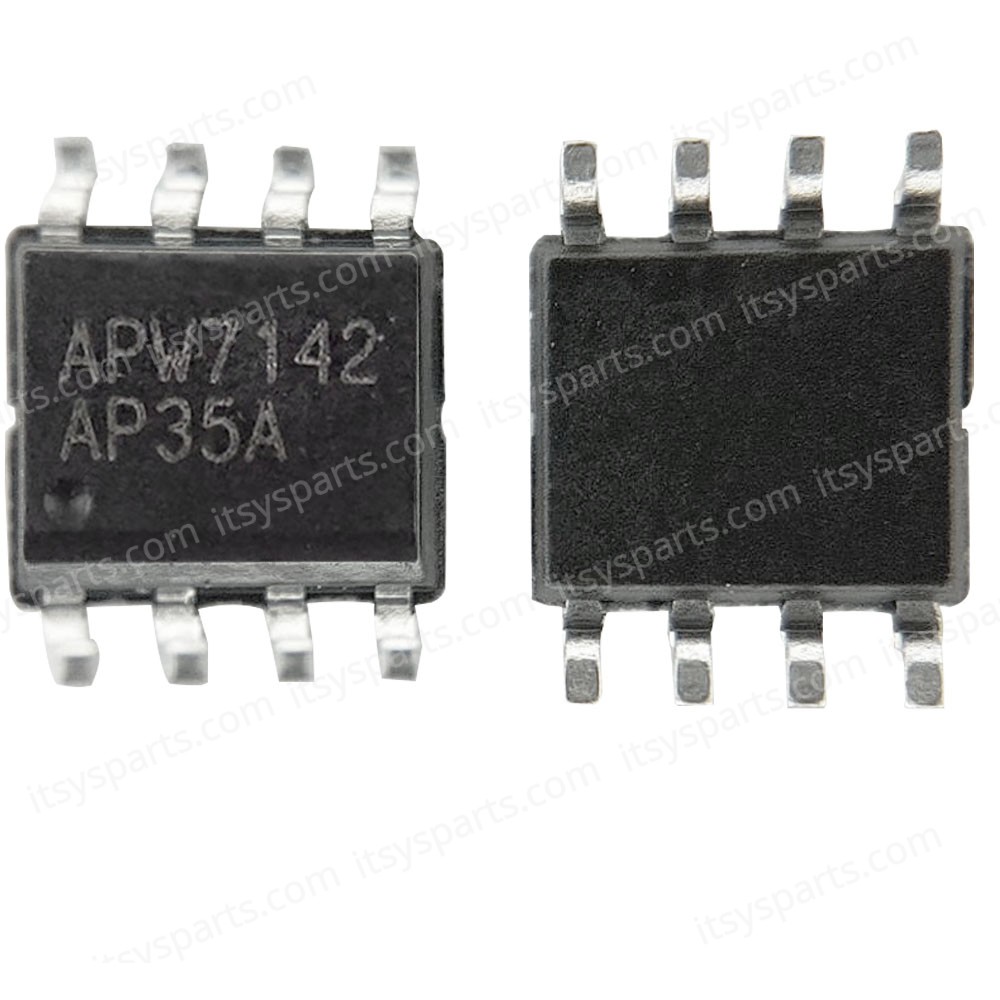

Controller IC Chip - Synchronous-Rectified Buck Converter MOSFET APW7142 APW 7142 chip for laptop

Controller IC Chip - Synchronous-Rectified Buck Converter MOSFET APW7142 APW 7142 chip for laptop - Integrated Laptop Chip (Code 1-CHIP0300)

0 reviews • Write a review

from

12.50€

Ex Tax: 10.08€

Stock: In Stock
Brand: Unbranded
Model: 1-CHIP0300
SKU: 1-CHIP0300

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Realtime Stock

Shipping & Returns

We send via DHL, UPS, USPS, FEDEX, Hellenic Greek Post, during the same day of the order placement. (Weekends are excluded).The average time of delivery for the United States is 13 to 18 days while for Europe is 5 to 7 days. Return Policy.

Additional Info

Our products are new and are shipped immediately. They have a 2 year warranty (except for batteries) and free shipping. Service line +302109247000 09:00-19:00 Mon-Fri. Our prices are without hidden charges and fees. We comply with the consumer rights directive 2011/83/EU. Any reference to the trademarks of the laptop manufacturers Toshiba, Lenovo, Acer, MSI, Asus, HP etc. is intended solely for the purpose of identifying the laptop manufacturer. Our Company and this website are not affiliated distributors with these manufacturers, the products offered for sale through our website are manufactured as high quality replacements by third party manufacturers. The products provided by our Company are not authentic. But they are worthy replacements and are sold for use in laptops of all manufacturers Toshiba Lenovo Acer MSI Asus HP etc.

Description

Controller IC Chip - Synchronous-Rectified Buck Converter MOSFET APW7142 APW 7142 chip for laptop- Integrated portable calculator chip(SKU.1-CHIP0300)

The APW7142 is a 3A synchronous-rectified Buck con-verter with integrated 70mQ power MOSFETs. The APW7142, designed with a current-mode control scheme, can convert wide input voltage of 4.3V to 14V to the output voltage adjustable from 0.8V to VIN to provide excellent output voltage regulation. For high efficiency over all load current range, the APW7142 is equipped with an automatic Skip/PWM mode operation. At light load, the IC operates in the Skip mode, which keeps a constant minimum inductor peak current, to reduce switching losses. At heavy load, the IC works in PWM mode, which inductor peak current is programmed by the COMP voltage, to provide high efficiency and excel-lent output voltage regulation. The APW7142 is also equipped with power-on-reset, soft-start, soft-stop, and whole protections (under-voltage, over-voltage, over-temperature, and current-limit) into a single package. In shutdown mode, the supply current drops below 3xA. This device, available in an 8-pin SOP-8 package, pro-vides a very compact system solution with minimal exter-nal components and PCB area.

Wide Input Voltage from 4.3V to 14V Output Current up to 3A Adjustable Output Voltage from 0.8V to VIN - -Â±2% System Accuracy 70mQ Integrated Power MOSFETs High Efficiency up to 95% - Automatic Skip/PWM Mode Operation Current-Mode Operation - Easy Feedback Compensation - Stable with Low ESR Output Capacitors - Fast Load/Line Transient Response Power-On-Reset Monitoring Fixed 500kHz Switching Frequency in PWM Mode Built-In Digital Soft-Start and Soft-Stop Current-Limit Protection with Frequency Foldback 123% Over-Voltage Protection Hiccup-Mode 50% Under-Voltage Protection Over-Temperature Protection <3.-A Quiescent Current in Shutdown Mode Small SOP-8 Package Lead Free and Green Devices Available (RoHS Compliant)

Please check the model number in our description as well as our photo..

Please check the IC Number and match with your existing Product.

When you receive before using it.

Please confirm the chip you received is brand new as described,if you suspect the chip is not new or not as described. Please don't use it and contact us immediately.

Please make sure you have advanced soldering skill to solder the chips that you will order.

Once it has been used, no return will be accepted.
