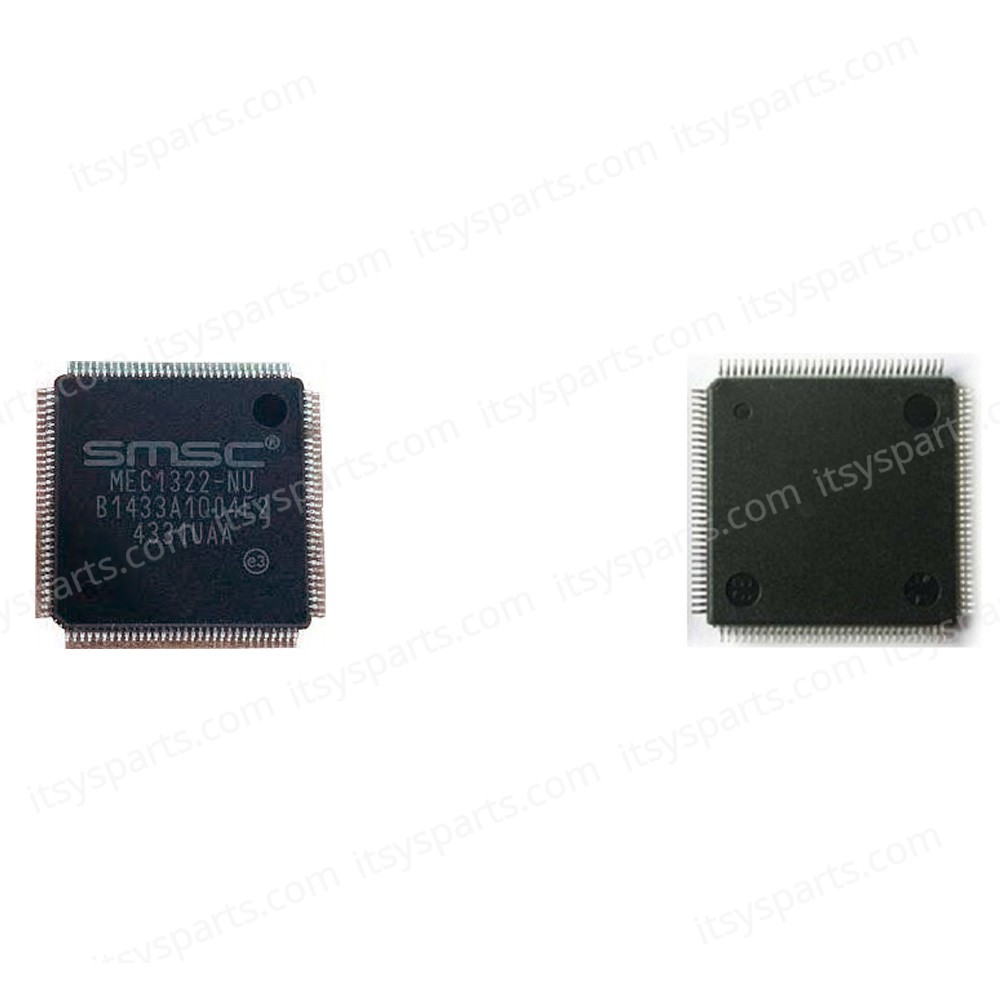

Controller IC Chip - SMSE MEC1322 NU MEC1322-NU QFP 128 Chip for laptop - Integrated Laptop Chip (Code 1-CHIP1101)

Controller IC Chip - SMSE MEC1322 NU MEC1322-NU QFP 128 Chip for laptop- Integrated portable calculator chip(SKU.1-CHIP1101)

The MEC1322 incorporates a high-performance 32-bit ARM® Cortex®-M4 embedded microcontroller with 128 Kilobytes of SRAM and 32 Ki lobytes of Boot ROM. It communicates with the system host using the Intel® Low Pin Count (LPC) bus. The MEC13 22 has two SPI memo ry interfaces that allow the EC to read its code from external SPI fl ash memory: private SPI a nd/or shared SPI. T he Shared SPI interface a llows for EC co de to be stored in a shared SPI chip along with the system BIOS. The private SPI with mory interface provi des for a dedi cated SPI flash that is only accessible by the EC. The MEC1322 provides support for loading EC co de from the private or shared SPI flash device on a VCC1 power-on. Before executing the EC code loaded from a SPI Flash Device, the MEC1322 validates the EC code using a digi tal signature encoded according to PKCS #1. T he sig nature use s R SA-2048 e ncryption a nd SHA-256 hashing. This provides automated detection of invalid EC code that may be a result of malicious or accidental corruption. It occurs before each boot of the host processor, thereby ensuring a HW based root of trust no t ea sily th warted via ph ysical repl acement attack. The MEC1322 is directly powered by two separate suspend supply planes (VBAT and VCC1) and senses the runtime power plane (VCC) to provide “Instant On” and system power management functions. It also contains an integrated VCC1 Reset Interface an d a system Power Management Interface that supports low-power states and can drive state changes as a result of hardware wake events.

Four EC-based SMBus 2.0 Host Controllers - Allows Master or Dual Slave Operation - Controllers are Fully Operational on Standby Power - DMA-driven I2C Network Layer Hardware -I 2C Datalink Compatibility Mode - Multi-Master Capable - Supports Clock Stretching - Programmable Bus Speeds - 400 KHz Fast-mo de Capable - 1 Mbps Fast-mode Plus Ca pable - Hardware Bus Access "Fairness" Interface - SMBus Time-outs Interface -5 Ports - 2 Port Flexible Multiplexing • PECI 3.0 Interface • Keyboard Matrix Scan Interface - 18 x 8 Interrupt/Wake Capable Multiplexed Keyboard Scan Matrix - Row Predrive Option • Four Breathing/Blinking LED Interfaces - Programmable Blink Rates - Piecewise Linear Breathing LED Output Controller - Operational in EC Sleep States • Dual Fan Tachometer Inputs • RPM-Based Fan Speed Control Algorithm - Utilizes one TACH input and one PWM output - 3% accurate from 500 RPM to 16k RPM - Automatic Tachometer feedback - Aging Fan or Invalid Drive Detection - Spin Up Routine - Ramp Rate Control - RPM-based Fan Speed Control Algorithm • Fast GATEA20 & Fast CPU_RESET • RSMRST# Functionality Supporting System Deep Sleep - Compatible with south bridge SUSCLK/ RSMRST# gating rules - Replacement 32K distribution available when RSMRST# is asserted • Integrated Power-on Reset Generator - VCC1_RST# open drain output - Accepts External driven Reset • Anti-Glitch Protection on Power-on • All Blocks Support Low Power Sleep Modes • General Purpose Input/Output Pins - Low Power - High Configurability • Two pin Debug Port with standard 16C550A register interface - Accessible from both Host and EC • BC-Link Interconnection Bus - One High Speed Bus Master Controller.

Please check before you buy it

Please check the IC Number and match with your existing Product.

When you receive before using it, please confirm the chip you received is brand new as described,if you suspect the chip is not new or not as described.

Please don't use it and contact us immediately.

Please make sure you have advanced soldering skill to solder the chips that you will order.

Once it has been used, no return will be accepted.
