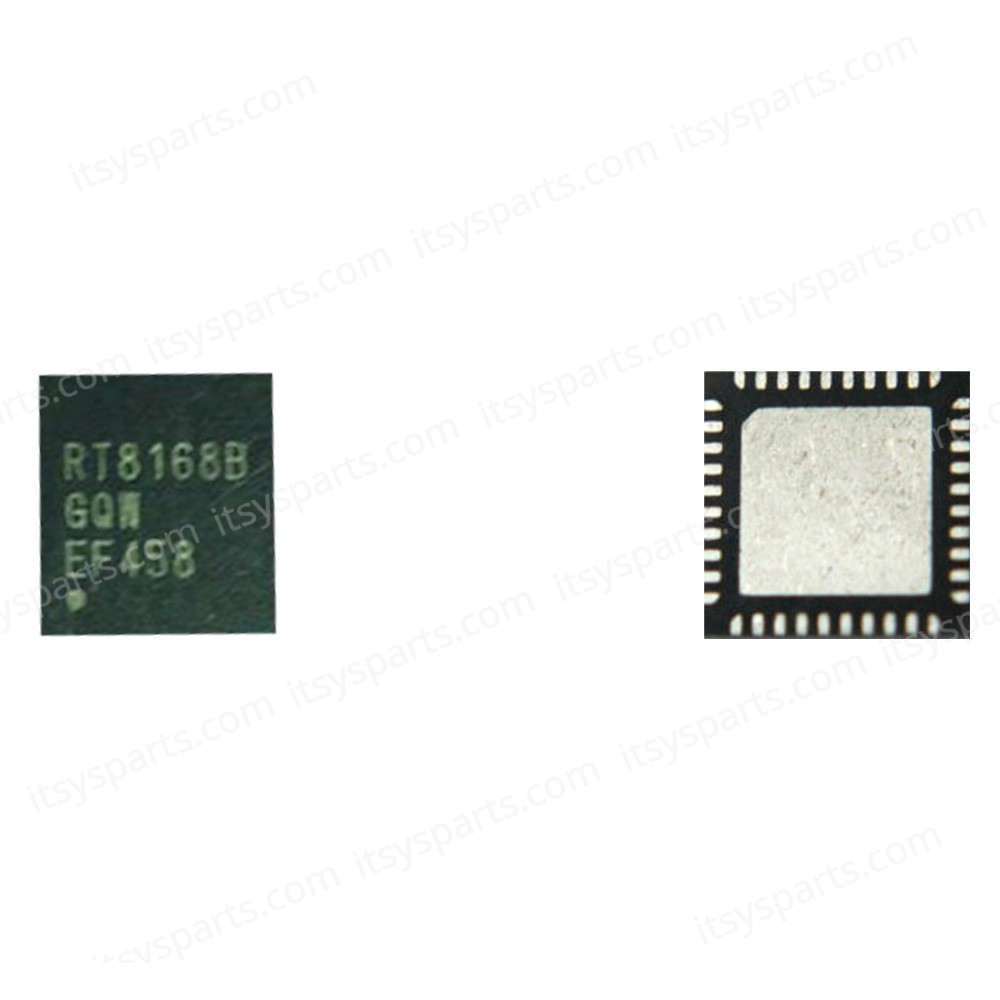

Controller IC Chip - RT8168B RT8168BGQW QFN40 Chip for laptop - Integrated Laptop Chip (Code 1-CHIP0932)

Controller IC Chip - RT8168B RT8168BGQW QFN40 Chip for laptop- Integrated portable calculator chip(SKU.1-CHIP0932)

The RT8168B is a dual single-phase PWM controller with integrated MOSFET drivers, compliant with Intel IMVP7 Pulse Width Modulation Specification to support both CPU core and GPU core power. This part adopts G-NAVPTM (Green-Native AVP), which is a Richtek proprietary topology derived from finite DC gain compensator in constant ontime control mode. G-NAVPTM makes this part an easy setting PWM controller to meet all Intel AVP (Active Voltage Positioning) mobile CPU/GPU requirements. The RT8168B uses SVID interface to control an 8-bit DAC for output voltage programming. The built-in high accuracy DAC converts the received VID code into a voltage value ranging from 0V to 1.52V with 5mV step voltage. The system accuracy of the controller can reach 0.8%. The RT8168B operates in continuous conduction mode or diode emulation mode, according to the SVID command. The maximum efficiency can reach up to 90% in different operating modes according to different load conditions. The droop function (load line) can be easily programmed by setting the DC gain of the error amplifier. with proper compensation, the load transient response can achieve optimized AVP performance. The output voltage transition slew rate is set via the SVID interface. The RT8168B supports both DCR and sense resistor current sensing. The RT8168B provides VR_READY and thermal throttling output signals for IMVP7 CPU and GPU core. This part also features complete fault protection functions including over voltage, under voltage, negative voltage, over current and thermal shutdown. The RT8168B is available in a WQFN-40L 5x5 small footprint package.

Dual Single-Phase PWM Controller for CPU Core and GPU Core Power  IMVP7 Compatible Power Management States  Serial VID Interface  G-NAVPTM Topology  AVP for CPU VR Only  0.5% DAC Accuracy  0.8% System Accuracy  Differential Remote Voltage Sensing  Built-in ADC for Platform Programming  SETINI/SETINIA for CPU/GPU Core VR Initial Startup Voltage  TMPMAX to Set Platform Maximum Temperature  ICCMAX/ICCMAXA for CPU/GPU Core VR Maximum Current  Power Good Indicator : VR_READY/VRA_READY for CPU/GPU Core Power  Thermal Throttling Indicator : VRHOT  Diode Emulation Mode at Light Load Condition  Fast Line/Load Transient Response  Switching Frequency up to 1MHz per Phase  OVP, UVP, NVP, OTP, UVLO, OCP  Small 40-Lead WQFN Package  RoHS Compliant and Halogen Free

Please check before you buy it

Please check the IC Number and match with your existing Product.

When you receive before using it, please confirm the chip you received is brand new as described,if you suspect the chip is not new or not as described.

Please don't use it and contact us immediately.

Please make sure you have advanced soldering skill to solder the chips that you will order.

Once it has been used, no return will be accepted.
