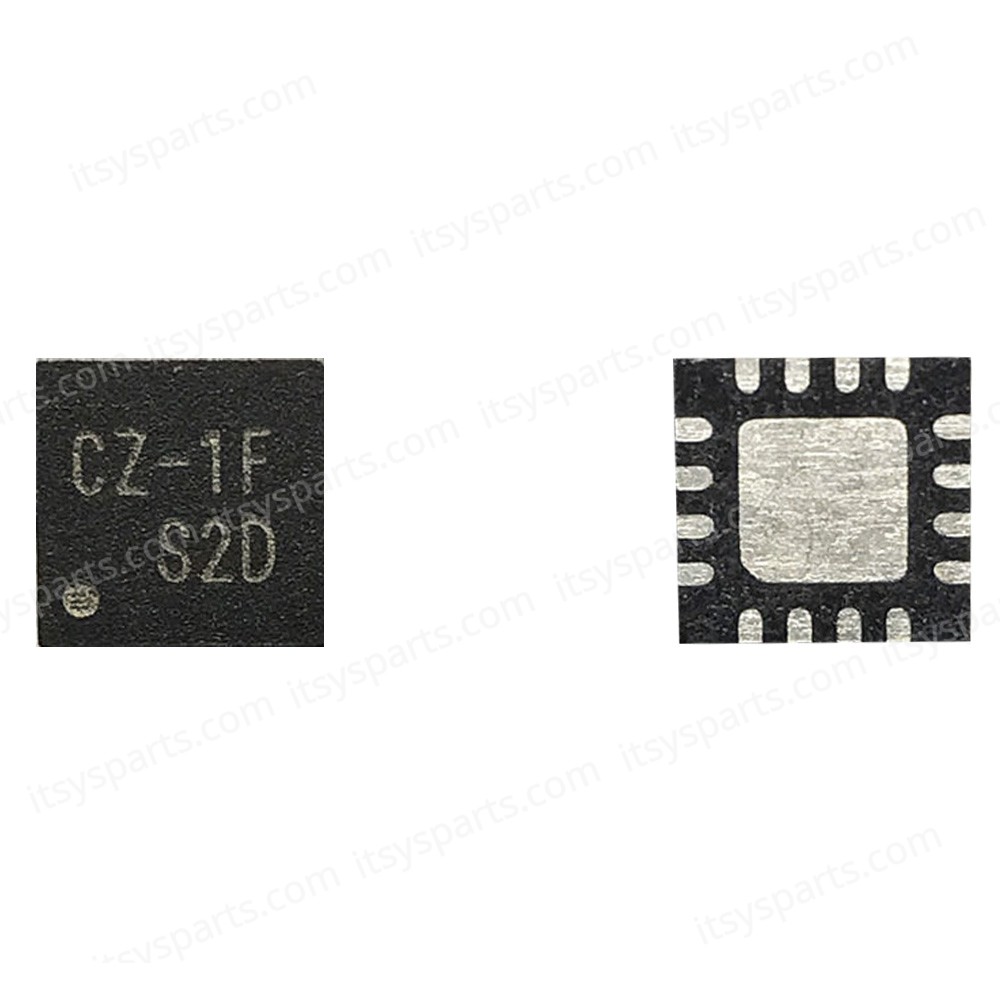

Controller IC Chip - RT8100APQV RT8100A RT8100 ( CZ-** ) QFN-16 Chip for laptop - Integrated Laptop Chip (Code 1-CHIP0924)

Controller IC Chip - RT8100APQV RT8100A RT8100 ( CZ-** ) QFN-16 Chip for laptop - Integrated Laptop Chip (Code 1-CHIP0924)
Controller IC Chip - RT8100APQV RT8100A RT8100 ( CZ-** ) QFN-16 Chip for laptop - Integrated Laptop Chip (Code 1-CHIP0924)
0 reviews • Write a review
from
13.62€
Ex Tax: 10.98€
  • Stock: In Stock
  • Brand: Unbranded
  • Model: 1-CHIP0924
  • SKU: 1-CHIP0924
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Realtime Stock

We send via DHL, UPS, USPS, FEDEX, Hellenic Greek Post, during the same day of the order placement. (Weekends are excluded).The average time of delivery for the United States is 13 to 18 days while for Europe is 5 to 7 days. Return Policy.

Our products are new and are shipped immediately. They have a 2 year warranty (except for batteries) and free shipping. Service line +302109247000 09:00-19:00 Mon-Fri. Our prices are without hidden charges and fees. We comply with the consumer rights directive 2011/83/EU. Any reference to the trademarks of the laptop manufacturers Toshiba, Lenovo, Acer, MSI, Asus, HP etc. is intended solely for the purpose of identifying the laptop manufacturer. Our Company and this website are not affiliated distributors with these manufacturers, the products offered for sale through our website are manufactured as high quality replacements by third party manufacturers. The products provided by our Company are not authentic. But they are worthy replacements and are sold for use in laptops of all manufacturers Toshiba Lenovo Acer MSI Asus HP etc.

Controller IC Chip - RT8100APQV RT8100A RT8100 ( CZ-** ) QFN-16 Chip for laptop- Integrated portable calculator chip(SKU.1-CHIP0924)

The RT8100A is an advanced DC/DC synchronous buckPWM controller with several innovative functions for specificcustomer’s ASIC only. The part features RichTek’sinnovative design and topology say “analogous currentmode” for current sensing and full functions for variousapplications including adjustable soft start, free-run andadjustable operation frequency and enable; the part is withdesign of 12V+12V boot strapped driver which is capableto drive up to 20Amp output current; moreover the part iswith implementation of accuracy DCR current sensingtopology. There are several specific features implementedand reserved for the specific customer’s specialapplications including dual VCORE control mode includingtracking and stand-alone mode, and output currentindication. The part is proposed with a small footprint ofVQFN-16L 3x3 package.

Analogous Current Mode Designzzzzz2.5V to 12V Switching Source Powerzzzzz0.8V to 3.3V Output Voltage RegulationzzzzzAdjustable VIN Feed-Forward Ramp SlopezzzzzAdjustable Operation FrequencyzzzzzPrecise Core Voltage RegulationzzzzzPrecise DCR Current Sensing with High QualityCapacitor, X7Rzzzzz±±±±± 1.5% System AccuracyzzzzzInput Voltage : 12V and 5V BiaszzzzzEnable FunctionzzzzzRoHS Compliant and 100% Lead (Pb)-FreezzzzzOver Current ProtectionzzzzzExternal Soft Start SettingzzzzzOperation Frequency up to 1.0MHzzzzzzDual Mode Voltage Control`Tracking Mode`Stand-Alone ModezzzzzOutput Current Indicationzzzzz16-Lead VQFN Package

Please check before you buy it

Please check the IC Number and match with your existing Product.

When you receive before using it, please confirm the chip you received is brand new as described,if you suspect the chip is not new or not as described.

Please don't use it and contact us immediately.

Please make sure you have advanced soldering skill to solder the chips that you will order.

Once it has been used, no return will be accepted.
