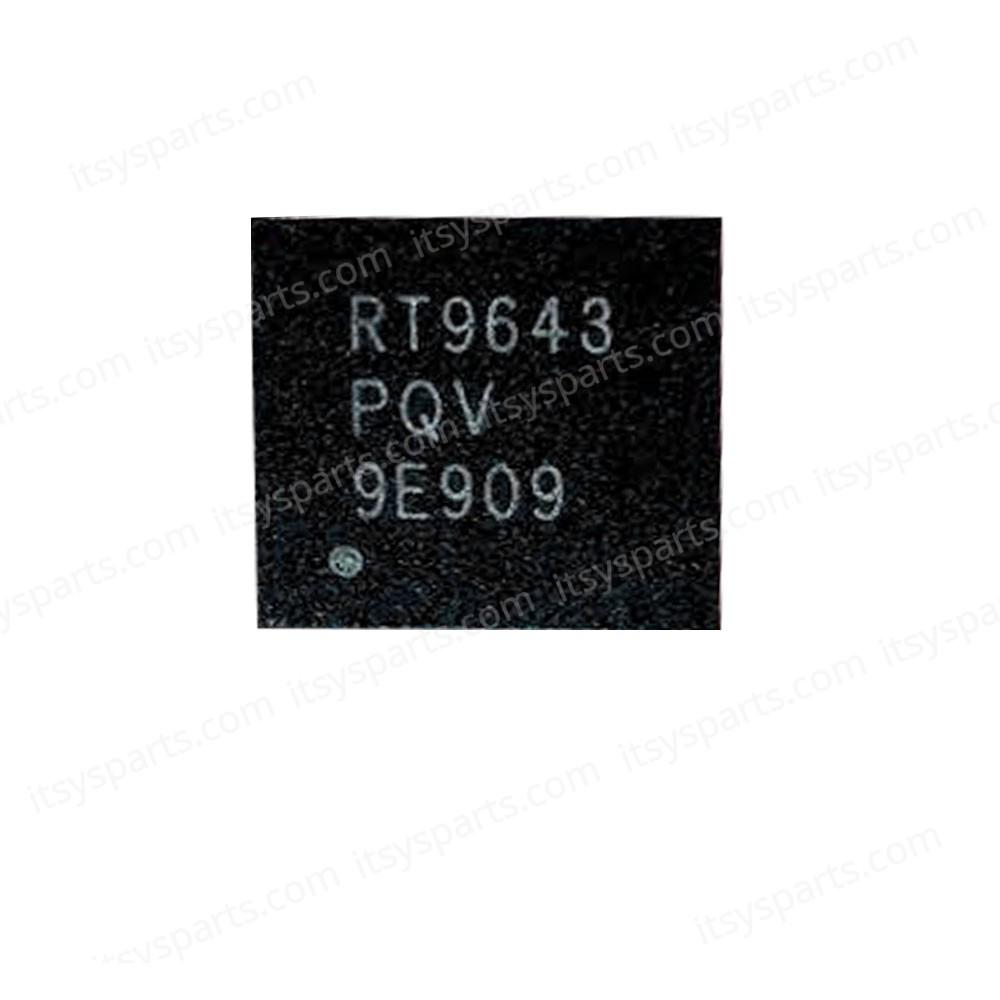

Controller IC Chip - MOSFET RT9643PQV RT9643 9643 chip for laptop - Integrated Laptop Chip (Code 1-CHIP0996)

Controller IC Chip - MOSFET RT9643PQV RT9643 9643 chip for laptop- Integrated portable calculator chip(SKU.1-CHIP0996)

5 Channel ACPI Regulator with Step-Down DC/DC Controller

The RT9643 is a combo regulator which is compliant to ACPI specification for desktop/motherboard power management and system application. The part features one switch regulator for DDR memory VDDQ power; three linear regulators including 1.5Amp peak sourcing/sinking capability regulator for DDR VTT, a 1.2V ultra-low-dropout linear controller for chipset miscellaneous power, a 3.3VSB power with 1.25Amp peak current capability; and 2 dual power control including 5VDL, and 3.3VDL control for S3 and S5 system power. The part totally feature 5 sets power which are compliant to ACPI specification into a single small footprint package VQFN-24L 5x5. The part is generally operated to conform to ACPI specification, in S3 state, there are only VDDQ and 3.3VSB regulators remain on while the VTT and ULDO regulators are off. In the transition from S3 to S0, an external SS capacitor is attached for linear regulators to control its slew rates respectively to avoid inrush current induced. Moreover, the PGOOD signal raises high in S0 stage while all 3 regulators go stable. In the stage of S5 (EN = 0), there only 3.3VSB LDO remain on, while the other regulators are powered down. The VDDQ PWM regulator is a voltage mode implementation with external compensation to provide high load transient response. The VTT is regulated to follow 1/2 of VDDQ and is capable of sourcing or sinking 1.5A peak currents.

z Integrated 5 Channels Power Regulator `DC/DC Buck PWM Regulator for VDDQ (2.5V or 1.8V) `Linear Regulator Supports 1.5Amp Peak Sinking/ Sourcing Capability for VTT `1.2V Ultra-Low-Dropout Linear Controller for GMCH VTT Power `3.3VSB Linear Regulator Supports 1.25A Capability `5VDL Switch Control `3VDL Switch Control z Conform to ACPI Specification `Support Power Management at S0, S3, and S5 State z 300kHz Fixed Frequency Switching z RDS(ON) Current Sensing or Optional Current Sense Resistor for Precision Over-Current Detect z Embedded Synchronous Boot-Strapped Diode z Power Good Signal Indication for All Voltages z Thermal Shutdown z 24-Lead VQFN Package z RoHS Compliant and 100% Lead (Pb)-Free

Please check the IC Number and match with your existing Product.

When you receive before using it.

Please confirm the chip you received is brand new as described,if you suspect the chip is not new or not as described. Please don't use it and contact us immediately.

Please make sure you have advanced soldering skill to solder the chips that you will order.

Once it has been used, no return will be accepted.
