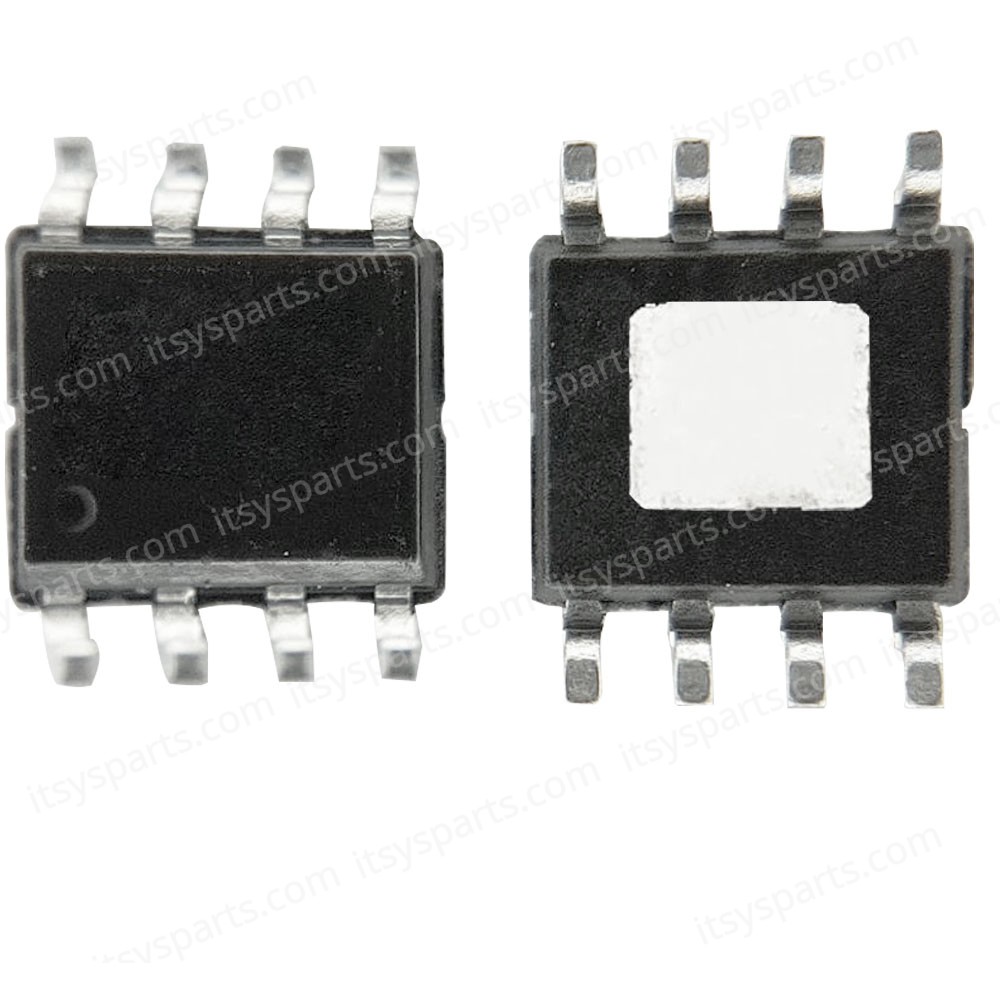

Controller IC Chip - 3A Ultra Low Dropout Linear Regulator MOSFET APL5933 APL5933A APL5933B APL5933C APL5933D chip for laptop - Integrated Laptop Chip (Code 1-CHIP0293)

Controller IC Chip - 3A Ultra Low Dropout Linear Regulator MOSFET APL5933 APL5933A APL5933B APL5933C APL5933D chip for laptop - Integrated Laptop Chip (Code 1-CHIP0293)
Controller IC Chip - 3A Ultra Low Dropout Linear Regulator MOSFET APL5933 APL5933A APL5933B APL5933C APL5933D chip for laptop - Integrated Laptop Chip (Code 1-CHIP0293)
0 reviews • Write a review
from
9.90€
Ex Tax: 7.98€
  • Stock: In Stock
  • Brand: Unbranded
  • Model: 1-CHIP0293
  • SKU: 1-CHIP0293
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Realtime Stock

We send via DHL, UPS, USPS, FEDEX, Hellenic Greek Post, during the same day of the order placement. (Weekends are excluded).The average time of delivery for the United States is 13 to 18 days while for Europe is 5 to 7 days. Return Policy.

Our products are new and are shipped immediately. They have a 2 year warranty (except for batteries) and free shipping. Service line +302109247000 09:00-19:00 Mon-Fri. Our prices are without hidden charges and fees. We comply with the consumer rights directive 2011/83/EU. Any reference to the trademarks of the laptop manufacturers Toshiba, Lenovo, Acer, MSI, Asus, HP etc. is intended solely for the purpose of identifying the laptop manufacturer. Our Company and this website are not affiliated distributors with these manufacturers, the products offered for sale through our website are manufactured as high quality replacements by third party manufacturers. The products provided by our Company are not authentic. But they are worthy replacements and are sold for use in laptops of all manufacturers Toshiba Lenovo Acer MSI Asus HP etc.

Controller IC Chip - 3A Ultra Low Dropout Linear Regulator MOSFET APL5933 APL5933A APL5933B APL5933C APL5933D chip for laptop- Integrated portable calculator chip(SKU.1-CHIP0293)

The APL5933A/B/C/D is a 3A ultra low dropout linearregulator. The IC needs two supply voltages, one is acontrol voltage (VCNTL)for the control circuitry, the other isa main supply Voltage(VIN) for power conversion, to re-duce power dissipation and provide extremely low drop-out voltage.The APL5933A/B/C/D integrates many functions. A Power-On-Reset (POR) circuit monitors both supply voltages onVCNTL and VIN pins to prevent erroneous operations. Thefunctions of thermal shutdown and current-limit protectthe device against thermal and current over-loads. A POKindicates that the output voltage status with a delay timeset internally. It can control other converter for powersequence. APL5933A/B/C/D can be enabled by otherpower systems. Pulling and holding the EN voltage be-low 0.4V or ENB above 1.2V will shuts off the output.The APL5933A/B/C/D is available in a SOP-8P packagewhich features small size as SOP-8 and an ExposedPad to reduce the junction-to-case resistance to extendpower range of applications

Ultra Low Dropout- 0.19V (Typical) at 3A Output Current•Low ESR output Capasitor (Milti-layer ChipCapasitors (MLCC)) Applicable•0.8V Reference Voltage•High Output Accuracy•Fast Transient Response•Adjustable Output Voltage•Power-On-Reset Monitoring on Both VCNTL andVIN Pins•Internal Soft-Start•Current-Limit and Short Current-Limit Protections•Thermal Shutdown with Hysteresis•Open-Drain VOUT Voltage Indicator (POK)•Low Shutdown Quiescent Current (< 30mA )•Built in Shutdown/Enable Control with floating high/low Function•Simple SOP-8P and TDFN3x3-10 Packages withExposed Pad•Lead Free and Green Devices Available(RoHS Compliant)Ultra Low Dropout- 0.19V (Typical) at 3A Output Current•Low ESR output Capasitor (Milti-layer ChipCapasitors (MLCC)) Applicable•0.8V Reference Voltage•High Output Accuracy•Fast Transient Response•Adjustable Output Voltage•Power-On-Reset Monitoring on Both VCNTL andVIN Pins•Internal Soft-Start•Current-Limit and Short Current-Limit Protections•Thermal Shutdown with Hysteresis•Open-Drain VOUT Voltage Indicator (POK)•Low Shutdown Quiescent Current (< 30mA )•Built in Shutdown/Enable Control with floating high/low Function•Simple SOP-8P and TDFN3x3-10 Packages withExposed Pad•Lead Free and Green Devices Available(RoHS Compliant)

Please check the IC Number and match with your existing Product.

When you receive before using it.

Please confirm the chip you received is brand new as described,if you suspect the chip is not new or not as described. Please don't use it and contact us immediately.

Please make sure you have advanced soldering skill to solder the chips that you will order.

Once it has been used, no return will be accepted.
