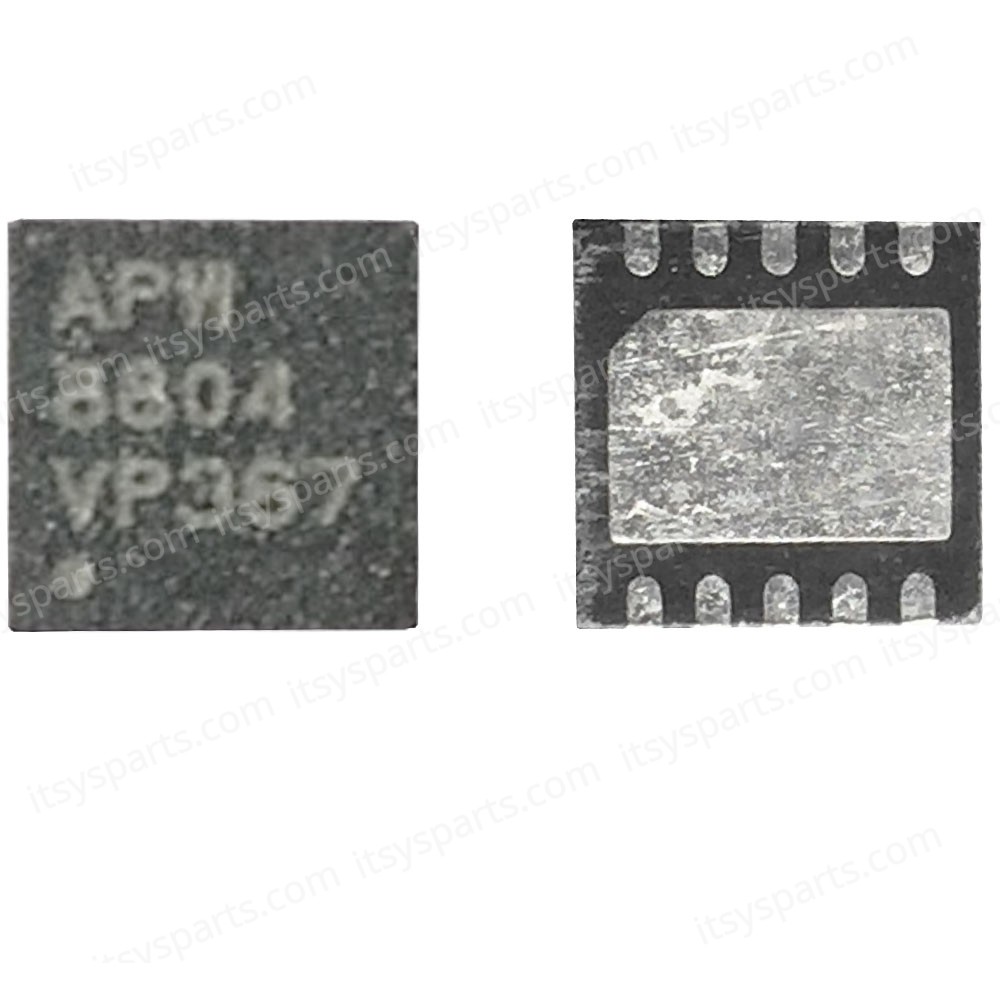

Controller IC Chip - 3A 5V 1MHz Synchronous Buck Converter MOSFET APW8804QBI-TRG APW8804 8804 chip for laptop - Integrated Laptop Chip (Code 1-CHIP0306)

Controller IC Chip - 3A 5V 1MHz Synchronous Buck Converter MOSFET APW8804QBI-TRG APW8804 8804 chip for laptop - Integrated Laptop Chip (Code 1-CHIP0306)
Controller IC Chip - 3A 5V 1MHz Synchronous Buck Converter MOSFET APW8804QBI-TRG APW8804 8804 chip for laptop - Integrated Laptop Chip (Code 1-CHIP0306)
0 reviews • Write a review
from
$8.59
Ex Tax: $8.59
  • Stock: In Stock
  • Brand: Unbranded
  • Model: 1-CHIP0306
  • SKU: 1-CHIP0306
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Realtime Stock

We send via DHL, UPS, USPS, FEDEX, Hellenic Greek Post, during the same day of the order placement. (Weekends are excluded).The average time of delivery for the United States is 13 to 18 days while for Europe is 5 to 7 days. Return Policy.

Our products are new and are shipped immediately. They have a 2 year warranty (except for batteries) and free shipping. Service line +302109247000 09:00-19:00 Mon-Fri. Our prices are without hidden charges and fees. We comply with the consumer rights directive 2011/83/EU. Any reference to the trademarks of the laptop manufacturers Toshiba, Lenovo, Acer, MSI, Asus, HP etc. is intended solely for the purpose of identifying the laptop manufacturer. Our Company and this website are not affiliated distributors with these manufacturers, the products offered for sale through our website are manufactured as high quality replacements by third party manufacturers. The products provided by our Company are not authentic. But they are worthy replacements and are sold for use in laptops of all manufacturers Toshiba Lenovo Acer MSI Asus HP etc.

Controller IC Chip - 3A 5V 1MHz Synchronous Buck Converter MOSFET APW8804QBI-TRG APW8804 8804 chip for laptop- Integrated portable calculator chip(SKU.1-CHIP0306)

APW8804 is a 3A synchronous buck converter with inte-grated 65mS2 high side and 55m52 low side power MOSFETs. The APW8804, design with a current-mode control scheme, can convert wide input voltage of 2.6V to 6V to the output voltage adjustable from 0.6V to 6V to provide excellent output voltage regulation. The APW8804 is equipped with an automatic PFM/PWM mode operation. At light load , the IC operates in the PFM mode to reduce the switching losses. At heavy load, the IC works in PWM mode. At PWM mode, the switching frequency is set by the external resistor. The APW8804 is also equipped with Power-on-reset, soft-start, soft-stop, and whole protections (under-voltage, over-voltage, over-temperature and current-limit) into a single package. This device, available TDFN3x3-10 and SOP-8P, provides a very compact system solution external components and PCB area.

High Efficiency up to 95% - Automatic PFM/PWM Mode Operation Adjustable Output Voltage from 0.6V to V:. Integrated 65mn High Side / 55mQ Low Side MOSFETs Low Dropout Operation: 100% Duty Cycle Stable with Low ESR Ceramic Capacitors Power-On-Reset Detection on VDD and PVDD Integrated Soft-Start and Soft-Stop Over-Temperature Protection Over-Voltage Protection Under-Voltage Protection High/ Low Side Current Limit Power Good Indication Enable/Shutdown Function Small TDFN3x3-10 and SOP-8P Packages Lead Free and Green Devices Available (RoHS Compliant)

Please check the model number in our description as well as our photo..

Please check the IC Number and match with your existing Product.

When you receive before using it.

Please confirm the chip you received is brand new as described,if you suspect the chip is not new or not as described. Please don't use it and contact us immediately.

Please make sure you have advanced soldering skill to solder the chips that you will order.

Once it has been used, no return will be accepted.
