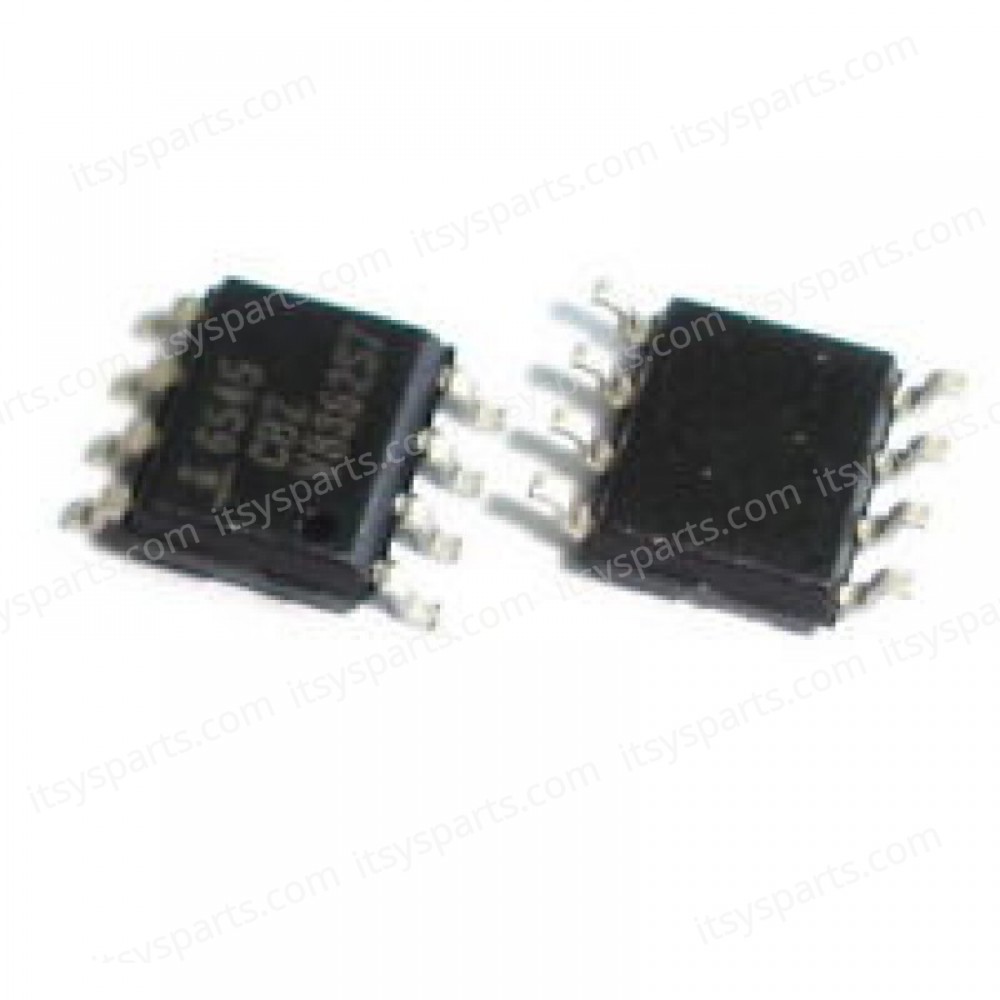

Controller IC Chip - Intersil ISL6545CBZ SOIC-8 chip for laptop - Integrated Laptop Chip (Code 1-CHIP0151)

Controller IC Chip - Intersil ISL6545CBZ SOIC-8 chip for laptop - Integrated Laptop Chip (Code 1-CHIP0151)
Controller IC Chip - Intersil ISL6545CBZ SOIC-8 chip for laptop - Integrated Laptop Chip (Code 1-CHIP0151)
0 reviews • Write a review
from
9.90€
Ex Tax: 7.98€
  • Stock: In Stock
  • Brand: Unbranded
  • Model: 1-CHIP0151
  • SKU: 1-CHIP0151
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Realtime Stock

We send via DHL, UPS, USPS, FEDEX, Hellenic Greek Post, during the same day of the order placement. (Weekends are excluded).The average time of delivery for the United States is 13 to 18 days while for Europe is 5 to 7 days. Return Policy.

Our products are new and are shipped immediately. They have a 2 year warranty (except for batteries) and free shipping. Service line +302109247000 09:00-19:00 Mon-Fri. Our prices are without hidden charges and fees. We comply with the consumer rights directive 2011/83/EU. Any reference to the trademarks of the laptop manufacturers Toshiba, Lenovo, Acer, MSI, Asus, HP etc. is intended solely for the purpose of identifying the laptop manufacturer. Our Company and this website are not affiliated distributors with these manufacturers, the products offered for sale through our website are manufactured as high quality replacements by third party manufacturers. The products provided by our Company are not authentic. But they are worthy replacements and are sold for use in laptops of all manufacturers Toshiba Lenovo Acer MSI Asus HP etc.

Controller IC Chip - Intersil ISL6545CBZ SOIC-8 chip for laptop- Integrated portable calculator chip(SKU.1-CHIP0151)

The ISL6545 makes simple work out of implementing a complete control and protection scheme for a DC/DC stepdown
converter driving N-Channel MOSFETs in a synchronous buck topology. Since it can work with either 5V or 12V supplies, this
one IC can be used in a wide variety of applications within a system. The ISL6545 integrates the control, gate drivers, output
adjustment, monitoring and protection functions into a single 8 Ld SOIC or 10 Ld DFN package.

The ISL6545 provides single feedback loop, voltage-mode control with fast transient response. The output voltage can be
precisely regulated to as low as 0.6V, with a maximum tolerance of ±1.0% over-temperature and line voltage
variations. A selectable fixed frequency oscillator (ISL6545 for 300kHz; ISL6545A for 600kHz) reduces design complexity,
while balancing typical application cost and efficiency. The error amplifier features a 20MHz gain-bandwidth product and 9V/µs slew rate which enables high converter
bandwidth for fast transient performance. The resulting PWM duty cycles range from 0% to 100%.

Please check before you buy it

Please check the IC Number and match with your existing Product.

When you receive before using it.

Please confirm the chip you received is brand new as described,if you suspect the chip is not new or not as described.

Please don't use it and contact us immediately.

Please make sure you have advanced soldering skill to solder the chips that you will order.

Once it has been used, no return will be accepted.
